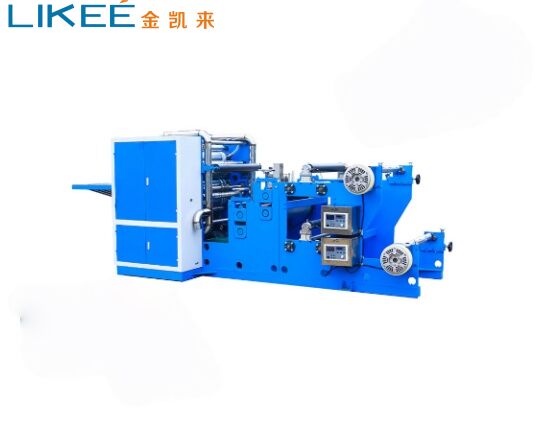

Aluminum Foil Sheet Pop Out Machine for Kitchen Cooking and Food Wrapping

This High Speed Aluminum Foil Pop-up Sheet Folding Machine is professional industrial-grade equipment designed to produce pre-cut, inter-folded pop-up aluminum foil sheets - the same type used daily in home kitchens for cooking, baking, and food wrapping.

The machine transforms raw aluminum foil rolls into neatly stacked, "pop-up" style foil sheets that can be pulled out one by one, just like tissue paper. It can be integrated with an automatic sheet box packing machine to form a complete, fully automated production line - from material feeding to final boxed consumer products.

Ideal for manufacturers supplying foil sheets to household users across North America, Europe, and Asia, this machine delivers high efficiency, customizable folding patterns, and consistent pop-up quality for kitchen convenience.

Material Feeding → Inter-Folding → Forming & Counting → Packing

• Pre-Cut & Interfold Pop-Up Technology: Produces professional pop-up aluminum foil sheets that are pre-cut and inter-folded (V or Z shape), allowing end users to pull out one sheet at a time without tearing or jamming.
• Customizable Folding Styles: Supports both 2 "V" and 3 "Z" folding configurations. Can be tailored to your target market's preference.
• Adjustable Machine Width: Available in custom widths from 680mm to 1200mm, accommodating different roll sizes and final sheet dimensions.
• High-Speed Output: Operating speed of 400-500 sheets per row, ensuring mass production capacity for large-scale distribution.
• Automatic Counting & In-Line Division: Equipped with an automatic counting system that divides output into required quantities per row.
• Custom Embossing Pattern Design: Supports different embossing patterns (diamond, square, custom logos) to enhance brand identity and improve anti-stick performance.
• Full Auto-Line Integration Ready: Can be directly connected to an automatic sheets box packing machine - forming a turnkey production line.
• Household-Focused End Product: Specifically creates pop-up foil sheets for kitchen cooking and food wrapping - targeting the global household consumer market.

• What types of aluminum foil sheets can this machine produce?
  This machine produces V-shape and Z-shape interlocked (pop-up) aluminum foil sheets - the same pull-out-one-by-one design used in household kitchen foil and food wrapping products.
• What finished product sizes are available?
  Standard finished product length is 273mm. Width is adjustable based on the mother roll: 680L machine: finished width from 100-635mm; 980L machine: finished width from 100-950mm. Other lengths (e.g., 240mm) can be customized.
• What is the production speed?
  At sheet size 304.8mm × 228mm, the machine runs at 400-500 sheets per minute, with 2 or 3 lanes available.
• What raw materials does the machine use?
  Raw material is aluminum foil rolls. Material thickness: 10-20 microns. Mother roll core diameter: 76mm (3 inches). Max mother roll diameter: 800mm.
• Can the machine be connected to a packing machine?
  Yes. It can be integrated with an automatic box packing machine to form a fully automated production line.
• What are the power and air supply requirements?
  Power supply: 380V, 50Hz, 3PH + N + E. Air pressure: 0.5-0.8 MPa, air consumption 300L/min.
• What is the installed power?
  Total installed power is 27KW, including: 22kW Roots vacuum pump, 4kW main motor, 1kW tension motor.
• What are the machine dimensions and weight?
  Dimensions (L×W×H): 5000 × 2000 × 1700 mm. Net weight: 4000 KG.
• Can embossing patterns be customized?
  Yes. The machine supports various embossing patterns - diamond, square, or custom logos - to enhance brand identity and anti-stick performance.
• Which markets is this machine mainly sold to?
  This machine is ideal for aluminum foil manufacturers supplying North America, Europe, Asia, and the Middle East, especially those producing household pop-up kitchen foil products.
